Tray Hay Feeder – Extended (Flat Packed)

From: $2,805.00
+ GST

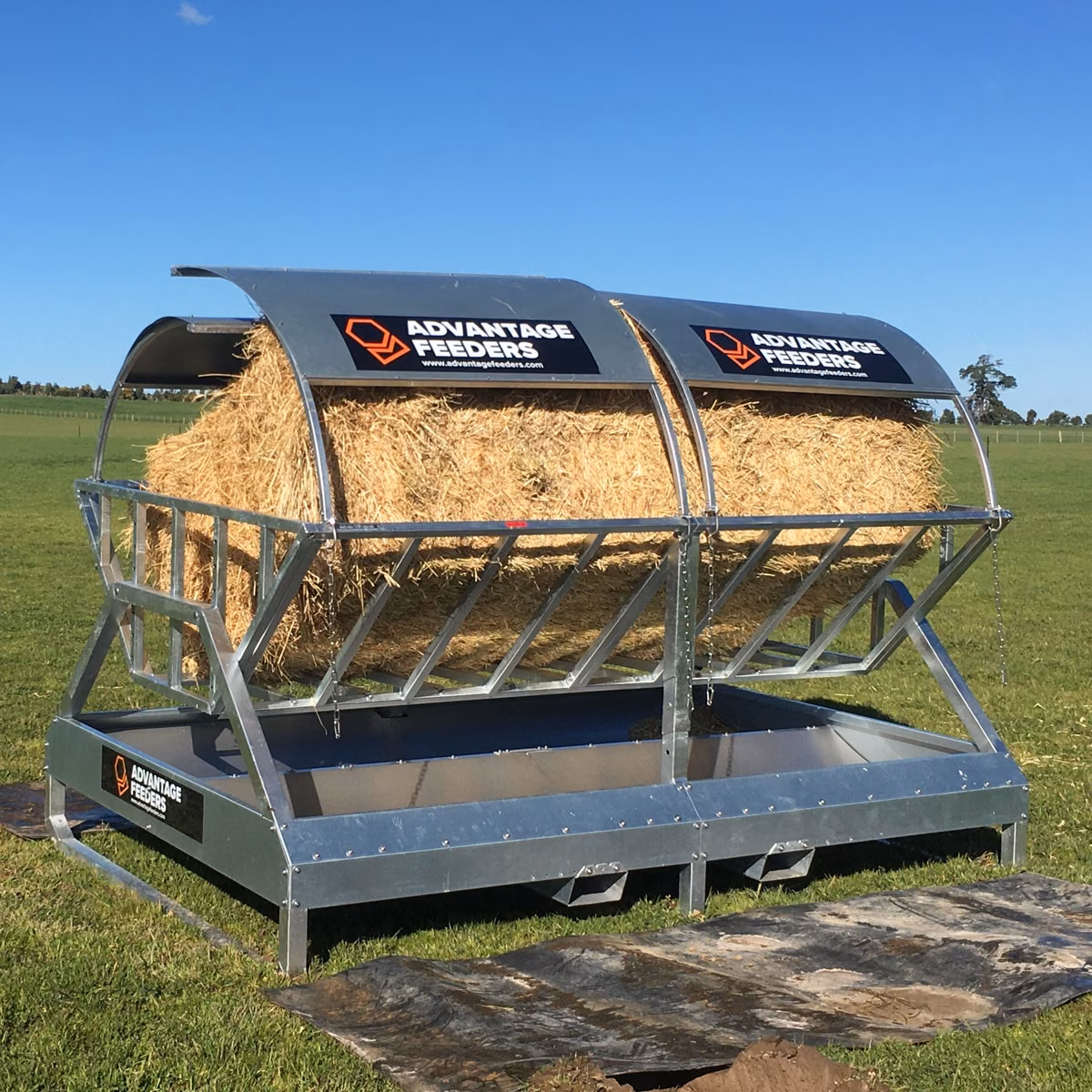

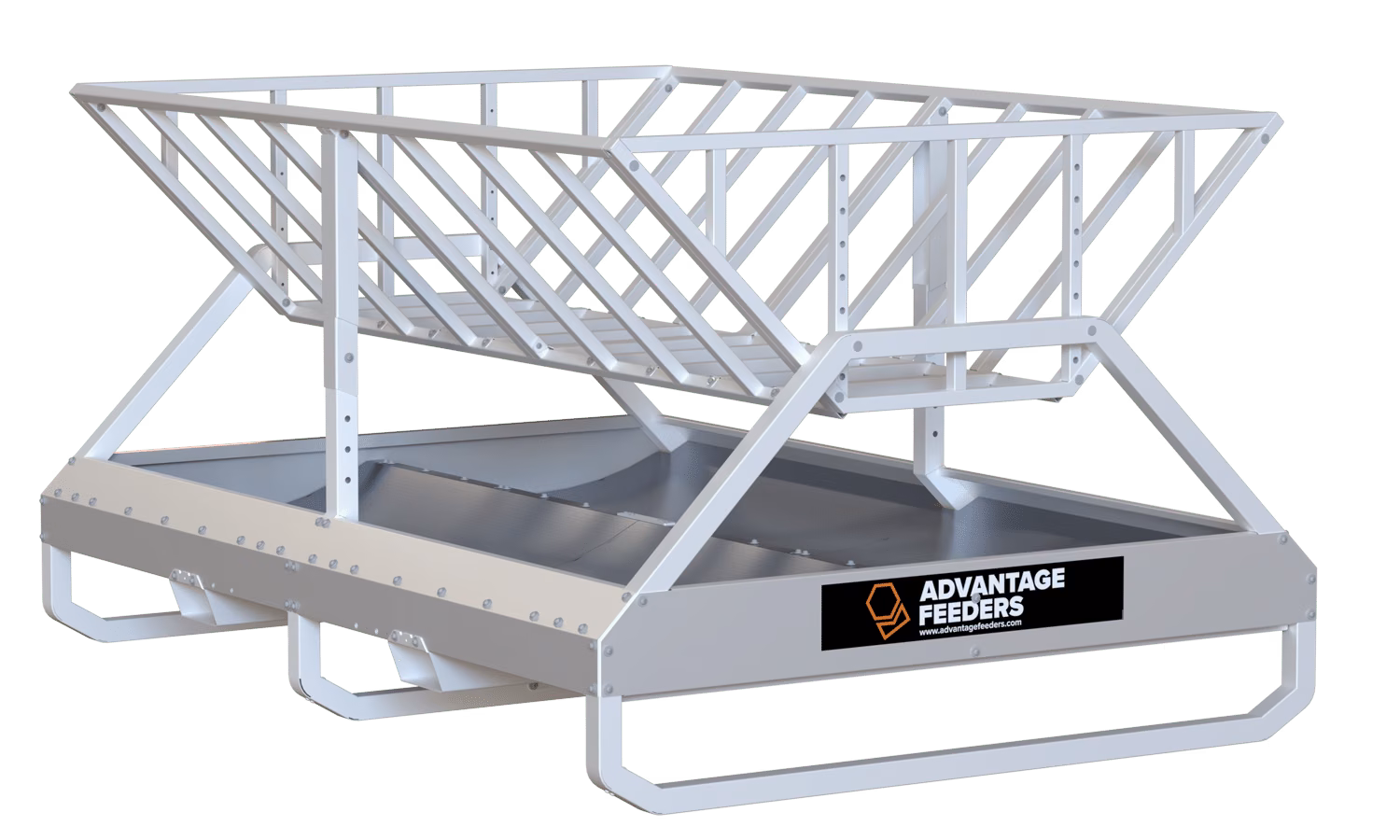

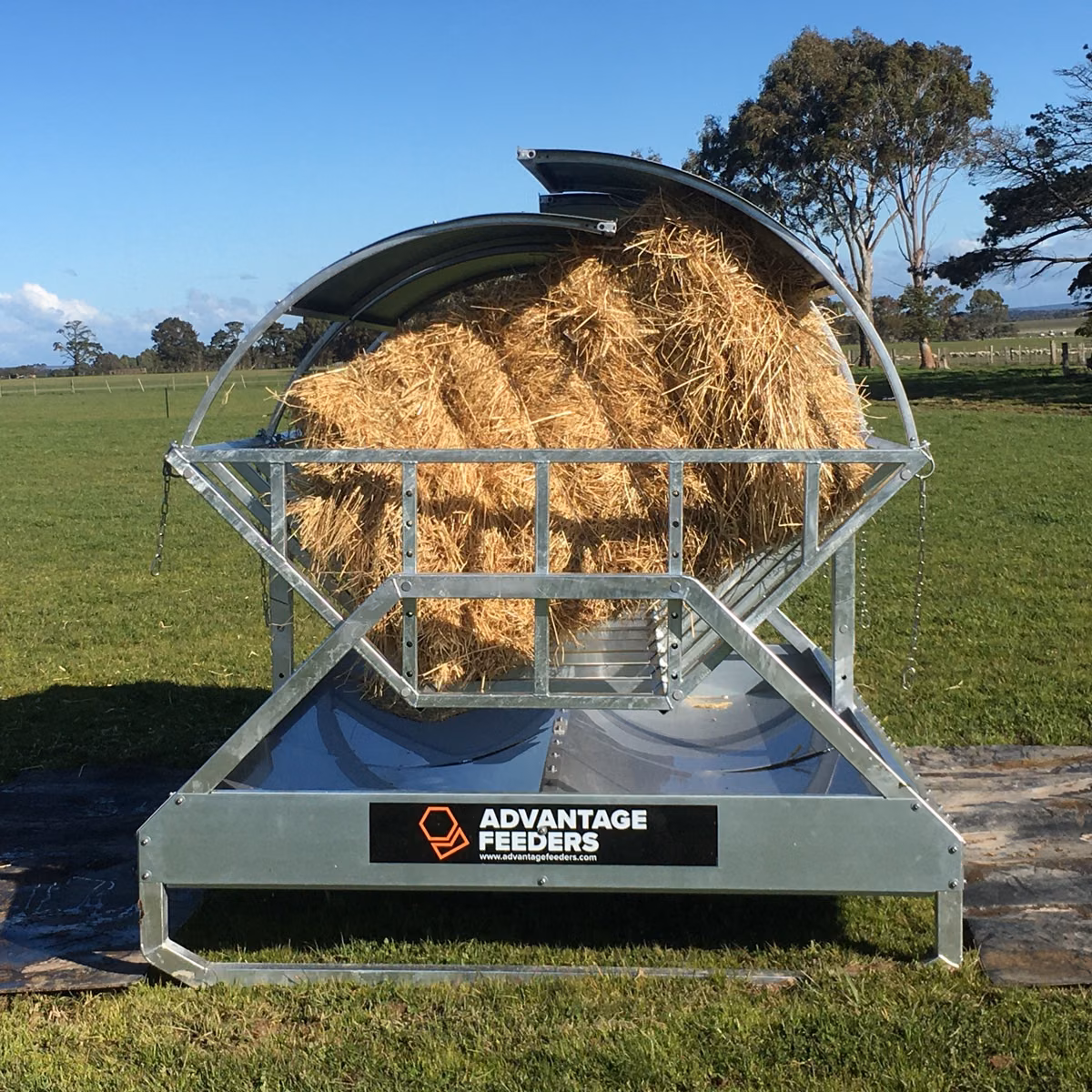

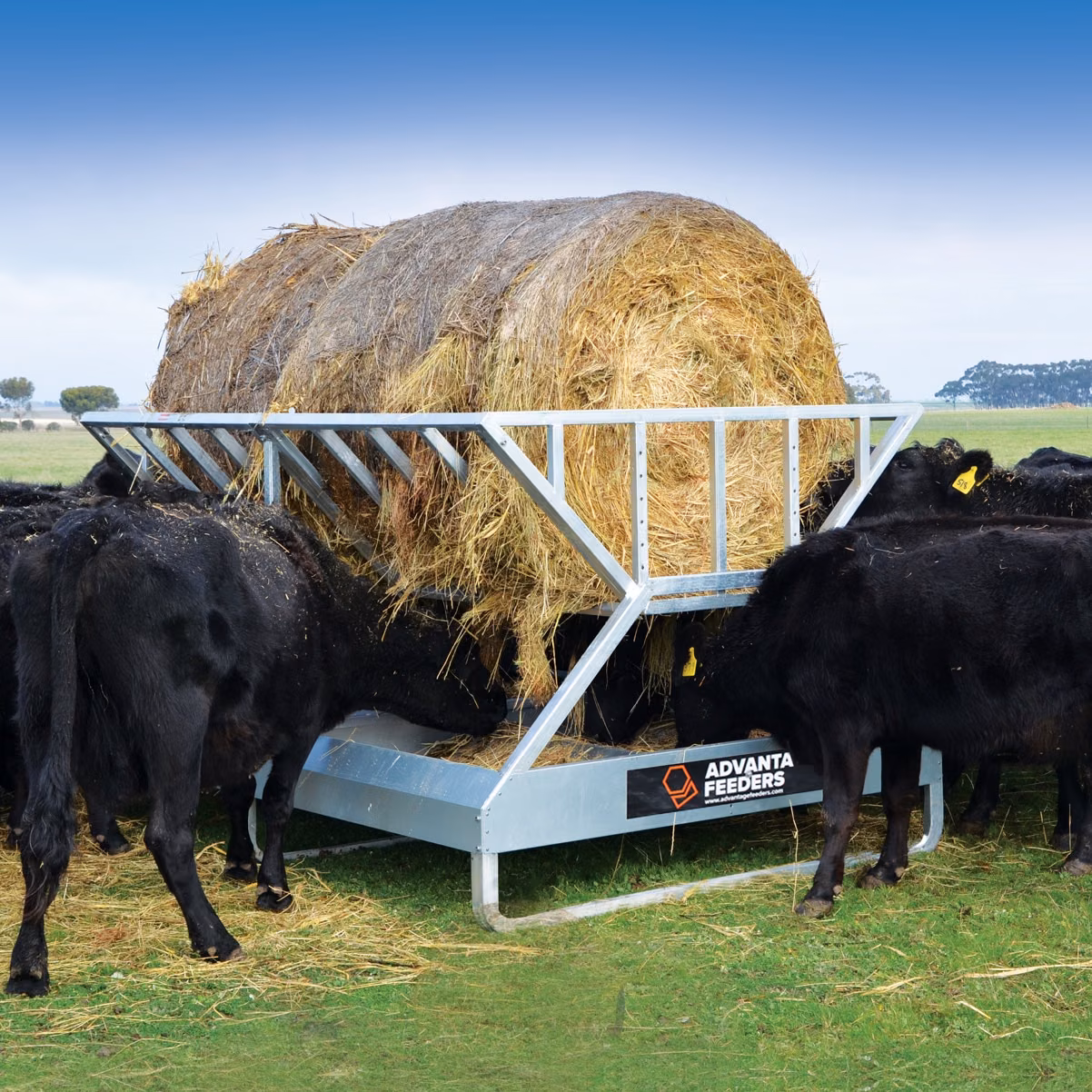

The Tray Hay Feeder Extended is a heavy‑duty, high‑capacity hay feeding solution engineered to deliver strength, longevity and greater control over feed wastage for livestock.

Designed with reinforced stainless‑steel trays and hot‑dipped galvanised SHS construction, it's built to withstand tough farm conditions while keeping feed accessible and dry. The adjustable height basket features seven settings that can be changed in just minutes, giving you flexibility to suit cattle, deer or horses, and the trays also double as meal feeders.

With a generous capacity to hold two 4′×6′ round bales or one large 8′×4′×4′ square bale, the Extended model feeds more stock - making it ideal for larger operations.

Important: When using with bulls, the THF-X Bull Kit is required to prevent entrapment.

$2,805.00
+ GST
Product Assembly Options:
  • Bale capacity: 2 × 4′×6′ round bale / 1 x 8′×4′×4′ square bale
  • Cattle or calves (paddock): 50
  • Cattle (feedlot): 35
  • Deer (paddock): 100
  • Horses: 25
  • Important: When using with bulls, the THF-X Bull Kit is required to prevent entrapment

Dimensions & Weight

  • Weight: 310kg
  • Assembled dimensions – highest: 2885 x 2035 x 1575mm (LxWxH)
  • Assembled dimensions – lowest: 2885 x 2035 x 1125mm (LxWxH)
  • Flat-pack dimensions: 2215 x 1160 x 360mm (LxWxH)
  • Gap between bars: 300mm
  • Bull Bar Kit: 16 additional side bars and 12 additional end bars
  • Bale capacity: 2 × 4′×6′ round bale / 1 x 8′×4′×4′ square bale

Notes

  • Standard gaps between bars are not suitable for bulls; use Bull Bar Kit to reduce bar width

The Tray Hay Feeder Extended features a reinforced stainless-steel floor with drainage holes to keep feed dry, and a durable hot-dipped galvanised SHS frame for long-lasting performance. It offers seven basket height options that can be adjusted in just five minutes, with trays that can also be used to hold meal. Designed for safety and durability, there are no exposed nuts or threads, and all bolts are mushroom head. Optional extras include a hay feeder roof that positions the bale to drain rain efficiently, while leg bracing adds stability. Additional practical features include two towing holes, and the feeder is available flat-packed or assembled. It comes with a five-year extended warranty and a 30-day money-back guarantee.

Accessories
Mineral attachments, rubber mats, creep panels and gates to extend your feeder as your operation’s needs change.

Bull Kits for the Tray Hay Feeder reduce bar gaps from 300mm to 140mm, safeguarding bulls and minimising the risk of head entrapment.

+ GST

Bull Kits for the Extended Tray Hay Feeder reduce bar gaps from 300mm to 140mm, safeguarding bulls and minimising the risk of head entrapment.

+ GST

Bull Kits for the Sliding Gates Hay Feeder reduce bar gaps safeguarding bulls and minimising the risk of head entrapment.

+ GST
