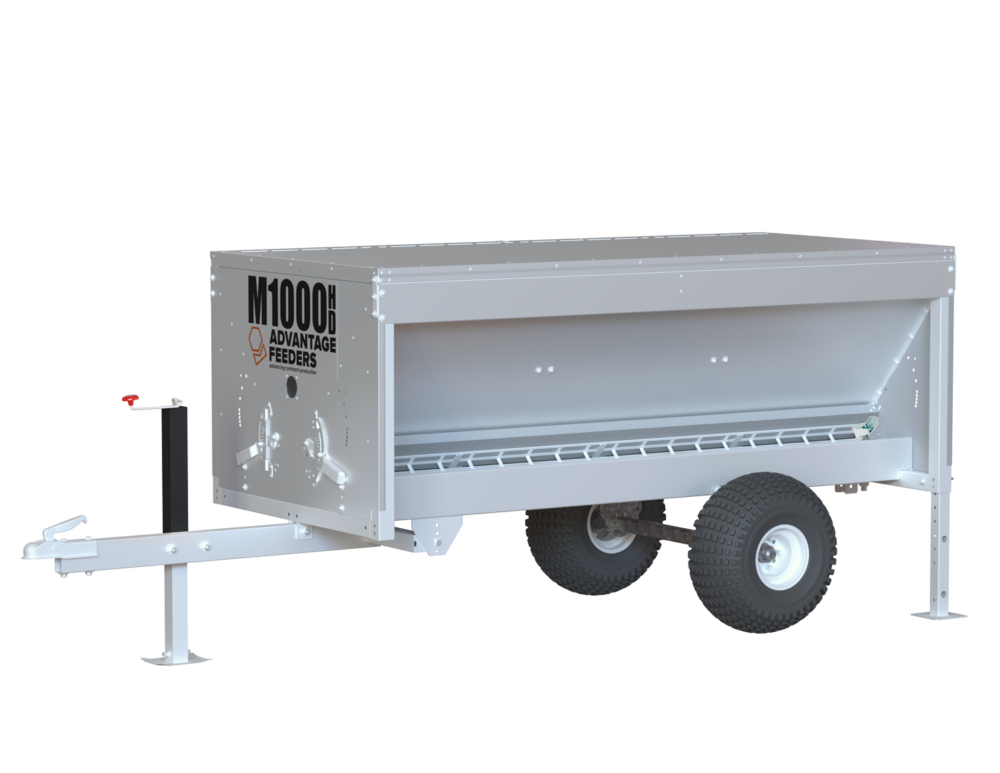

M1000HD

Order / Quote
Prices
Contact
Find a distributor

Stronger, Last Longer, More control

  • Stainless Steel parts
  • Precise 3 way saliva restriction system
  • Tow at 25km/h
  • 5 year warranty*
  • Suitable for on-farm towing only
Weight: 290 kg
Dimensions at sheep height :
 3465 x 1310 x 1180 (LxWxH)
Dimensions at cattle height:
 3465 x 1310 x 1330 (LxWxH)
Feed Volume: 1000 litres
Feed weight – wheat/lupins: 770 kg
Feed weight – barley/pellets: 650 kg
Feed weight – oats: 520 kg
Axle rating: 1000 kg
Tyre rating: 1000 kg
Tyre size: 22-11-8 6 Ply
Ewes or lambs (paddock): 200-250
Ewes or lambs (feedlot):
120-150
Ewes and lambs (creep feeding):
200-250 combined
Cattle or calves (paddock):
40-50
Cattle (feedlot): 30-35
Goats (paddock): 200-250
Deer (paddock): 120-150
Pigs: 120-150
  • Reinforced stainless steel troughs
  • Reinforced stainless steel upper adjusters
  • Solid stainless steel lower adjusters
  • 2x adjuster guards standard
  • Adjuster guard storage (for when not in use)
  • 2 x 40mm SHS stands
  • Sheep and cattle height options available
  • Z275 sheet metal, stainless steel and galvanised dipped
  • 45 degrees angled trough
  • Rain protection reinforcing
  • Sidewall bracing
  • 3 x adjuster braces
  • Dual tab adjuster braces
  • 4 x locking bolts on the lower adjusters
  • Adjuster guard locking system
  • Dual positioned adjuster guard for dusty feeds
  • 2 x 75mm round sight glasses
  • 2x volume stickers
  • Adjust feeder height in about 30 minutes
  • Cleaning tool supplied
  • Tube spanner supplied
  • Secure storage for tools
  • 2x new tyres
  • 2380mm trough length
  • Painted notch system on the adjusters
  • Deep 110mm trough depth
  • Gutters on side walls drain out of feeder
  • Reinforced roof edges
  • Mineral attachment option
  • Lamb creep feeding panel option
  • 5 year extended warranty
  • Standard operating procedure supplied
  • User guide supplied
  • Trial reports available
